Architecture

Rocco is designed to be modular, separating concerns across evaluation, enhancement, RAG, and LLM integration.

System Diagram

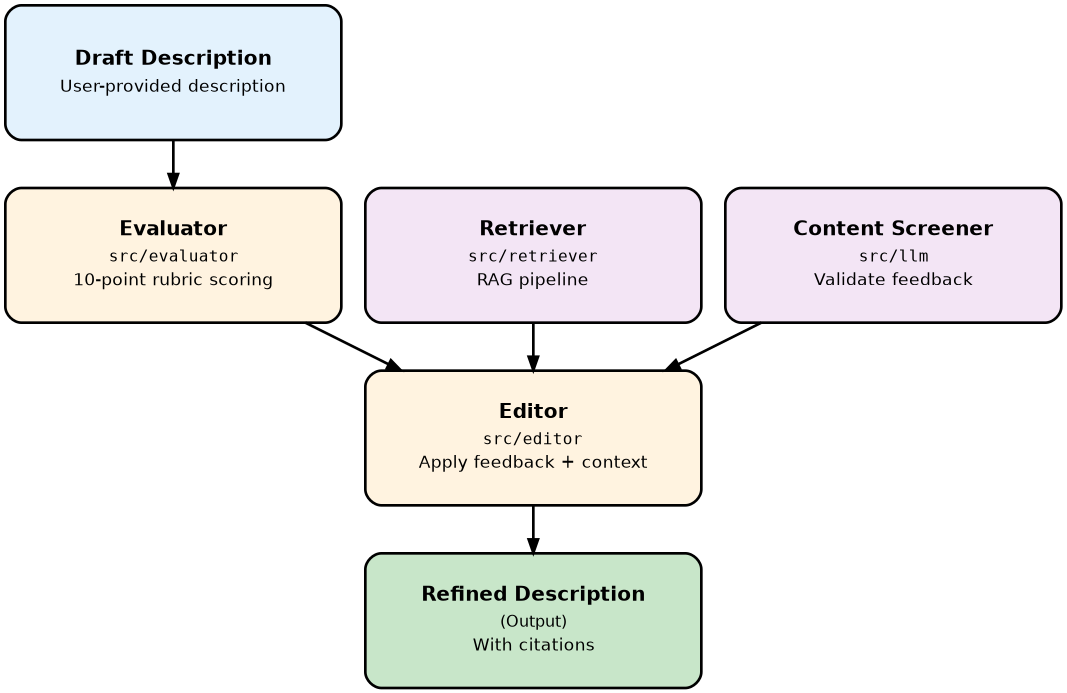

Core Processing Pipeline

Core Modules

src/llm/ — LLM Integration

• client.py — LLMClient and RoccoClient

  • Wraps OpenAI SDK for provider-agnostic usage

  • Supports: OpenAI, Anthropic, Ollama, DeepSeek, Gemini, HuggingFace, SambaNova

  • Environment-driven configuration (LLM_PROVIDER, LLM_API_KEY, LLM_MODEL, LLM_BASE_URL)

• content_screener.py — ContentScreener class

  • Validates user feedback for relevance, accuracy, tone, coherence

  • Returns recommendation (accept/reject/flag)

• schemas.py — Pydantic models

  • Structured output schemas for all LLM calls

src/evaluator/ — Rubric Evaluation

• evaluator.py — DescriptionEvaluator class

  • Scores descriptions against 10 criteria

  • Uses few-shot examples for consistency

  • Returns structured breakdown + total score

• rubric.json — Evaluation criteria definition

  • 10 criteria, 1 point each

  • Criterion name, description, scoring guidance

• examples_v3.json — Few-shot examples

  • 3 example (description, score, explanation) tuples

  • Improves evaluator consistency

src/ingestor/ — Document Chunking & Embedding

• document_ingestor.py — DocumentIngestor class

  • Chunks PDFs/DOCX using LangChain’s RecursiveCharacterTextSplitter

  • Config: 500 char chunks, 100 char overlap

  • Enriches chunks with metadata (filename, page, chunk index)

• embedder.py — DocumentEmbedder class

  • Uses sentence-transformers (BAAI/bge-large-en-v1.5)

  • Generates semantic embeddings for retrieval

• base.py — Abstract base class

  • Common interface for pluggable ingestors

src/retriever/ — Vector Storage & Search

• retriever.py — VectorStoreManager class

  • FAISS-backed vector store

  • Methods: add_documents(), similarity_search_with_score()

  • Supports save/load to disk

src/editor/ — Description Enhancement

• editor.py — DescriptionEditor class

  • Input: original description, RAG context, user feedback

  • Process: prompt rendering + LLM call

  • Output: improved description + citations

src/prompts/ — Prompt Management

• loader.py — PromptLoader class

  • Loads YAML prompt files

  • Renders with Jinja2 template variables

• YAML prompt files:

  • evaluator.yaml — Rubric scoring prompt

  • editor.yaml — Description enhancement prompt

  • content_screener.yaml — Feedback validation prompt

Data Flow

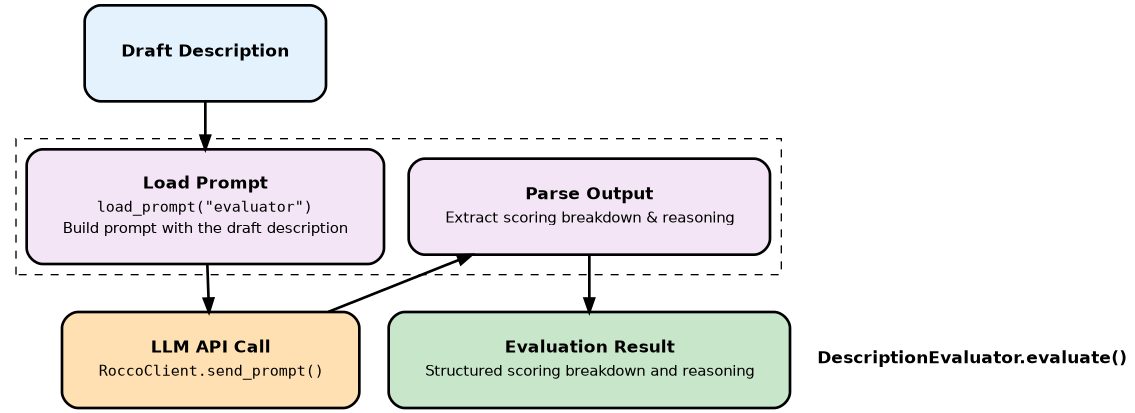

Evaluation Path

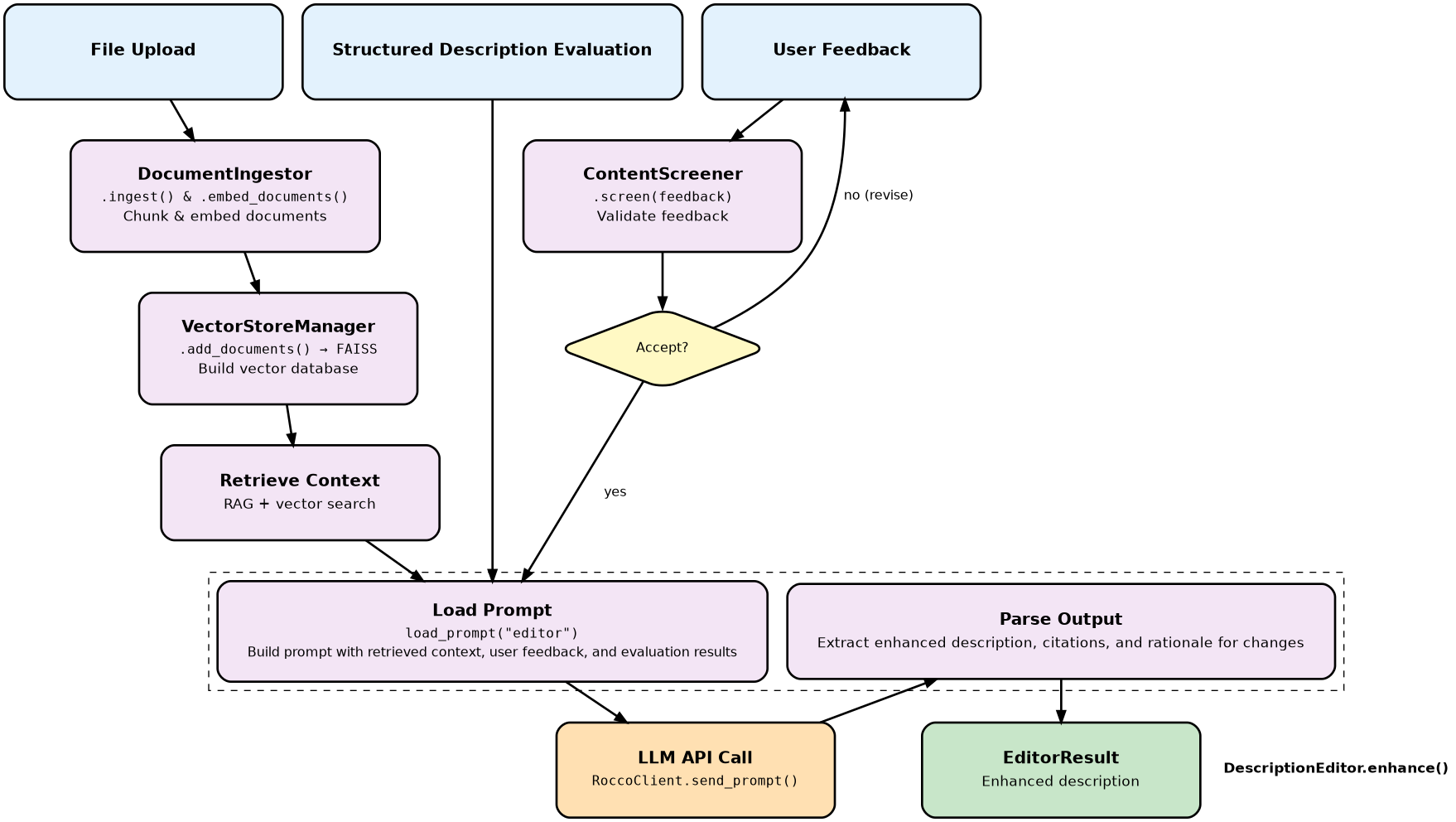

Enhancement Path

Configuration

Environment Variables (via .env)

• LLM_PROVIDER — Shortcut to endpoint (openai, anthropic, ollama, etc.)

• LLM_API_KEY — API key or “ollama” for local

• LLM_BASE_URL — Custom endpoint URL (optional)

• LLM_MODEL — Model name (defaults to gpt-4o-mini)

Session State (Streamlit)

Stored in st.session_state:

• description_text — current description

• evaluation — latest evaluation result

• vector_store_manager — loaded FAISS index

• enhanced_description — improved version

• user_feedback — feedback text

• screening_result — content screener result

• And more…

Extension Points

Adding a New LLM Provider

1. Add provider → base URL mapping to PROVIDER_URLS in src/llm/client.py

2. Update .env.example with provider config

3. No code change needed (OpenAI SDK handles compatibility)

4. Document in README and configuration guide

Adding New Evaluation Criteria

1. Add criterion to src/evaluator/rubric.json

2. Update src/evaluator/examples_v3.json with new examples

3. Update src/prompts/evaluator.yaml to reference new criteria

4. Bump version in evaluator.yaml (major if score scale changes)

Adding a New Document Type

1. Create CustomIngestor extending DocumentIngestor

2. Implement custom chunking logic

3. Register in rocco_ui.py

Testing

Run tests:

pytest tests/

Key test patterns:

• Evaluator tests — verify rubric scoring consistency

• Retriever tests — verify FAISS indexing and search

• Editor tests — verify prompt rendering and citation tracking

• Integration tests — end-to-end workflow (evaluate → enhance → screen)
